Stainless steel 304 flange Rubber Expansion Bellow From Leading Brand Rubber Expansion Bellow Manufacturer
Stainless steel 304 flange Rubber Expansion Bellow From Leading Brand Rubber Expansion Bellow Manufacturer. The Rubber Expansion Bellow is widely used in health, chemical, and other pipelines
stainless steel 304 flange rubber expansion bellow introduction:
1, as shown in the title: stainless steel 304 flange, the flange is widely used in health, chemical, and other pipelines.
2. The rubber pipe body is used with normal products of 16kg pressure, and ordinary water and the temperature is below 80 degrees.
3, mainly play the role of vibration and noise reduction, effectively protecting the long-term service life of the pump equipment.
4, 304 stainless steel flange + rubber expansion bellow = 304 stainless steel flange rubber expansion bellow
stainless steel 304 flange rubber expansion bellow performance:

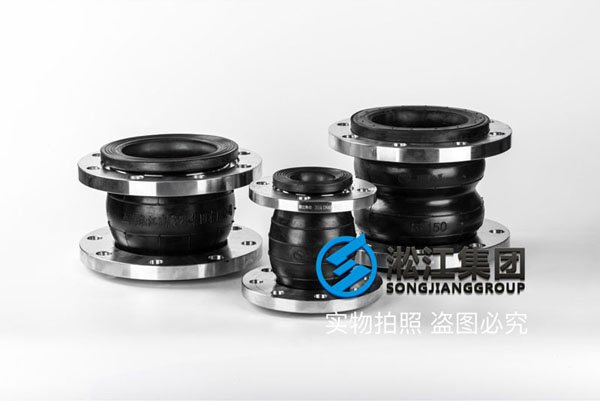

1, stainless steel flange rubber expansion bellow is mainly made of ball stainless steel flange with rubber ball combination.
2, Songjiang stainless steel flange rubber expansion bellow products are mainly used in all kinds of chemical pipelines and food pipelines with good corrosion resistance, these pipelines are food pipelines or corrosive media pipelines.
3, stainless steel rubber expansion bellow products are generally made of corrosion-resistant imported rubber, with good corrosion resistance, safe and assured use.
4, stainless steel, rubber expansion bellow used in the vibration displacement of pipe or is a settlement of the pipeline, the pipeline is vulnerable to all sorts of equipment and the influence of heat from the cold in the settlement, the influence of using the battle of stainless steel rubber expansion bellow product can be a very good solve these problems, ensure the safety of pipeline running effectively won’t appear any leakage phenomenon.
5, small size, lightweight, good elasticity, easy installation, and maintenance.
6, installation can produce transverse, axial, angular displacement, not by the pipe core, flange uneven limit.
7, can reduce the structure transmission noise, strong vibration absorption capacity.
8. The internal seamless high-pressure rubber expansion bellow independently developed by our company can more effectively prevent the erosion of corrosive media on the inner wall of rubber expansion bellow and improve the service life in the pipeline with high-temperature resistance, acid and alkali resistance, and oil resistance.
Stainless steel 304 flange rubber expansion bellow basic information:
Origin: Shanghai
Product category: Single ball type
Properties: high-temperature resistance, acid and alkali resistance, wear-resistance, and so on. Sex.
Product pressure * : 1.0mpa, 1.6mpa, 2.5mpa
Material of matching flange: 304 stainless steel flange
Application: Widely used in the chemical industry, construction, water supply, drainage, petroleum, light and heavy industry, refrigeration, sanitation, plumbing, fire, electric power, and another basic engineering.
Stainless steel 304 flange rubber expansion bellow
1, stainless steel flange rubber expansion below is mainly used to reduce vibration, reduce noise, have good scalability, easy to use.
2, single ball rubber expansion bellow is also known as rubber soft joint, soft joint, shock absorber, pipeline shock absorber, shock absorber throat, etc., is the first kind of high elasticity, high air tightness, medium resistance, and weather resistance of pipeline joint.
3. The product makes use of rubber’s elasticity, high air tightness, medium resistance, weather resistance, radiation resistance, etc. It adopts polyester cord cloth with high strength and strong cold and heat stability after skewering and composite and is vulcanized by high pressure and high-temperature mold.
4, single ball rubber expansion bellow is made of fabric reinforced rubber parts and flat joints, it is the first kind of high elasticity, high air tightness, medium resistance, and weather resistance of the pipeline joint.
Stainless steel 304 flange rubber expansion bellow above the use of stainless steel 304 flange introduction:
1. Stainless steel flange is mainly used to connect pipes with pipes. According to the structure, there are integral flanges, looping flanges, and threaded flanges. The common integral flange has a flat welding flange and butt welding flange.
2. Flanged pipe fittings refer to pipe fittings with flanges (flanges or joints). It can be cast, threaded, or welded. Flange connection refers to a pair of flanges, a gasket, and several bolts and nuts. The gasket is placed between the two flange sealing surfaces, and after screwing the nut, the specific pressure on the surface of the gasket is deformed after reaching a certain value, and the uneven sealing surface is filled so that the connection is tight and not leaked. A flange connection is the first kind of removable connection.
3. There are holes on the flange, which can be threaded with bolts to make the two flanges closely connected and sealed with gaskets between the flanges. The connected parts can be divided into container flange and pipe flange.
