KQJZ-900-a dry type transformer air Vibration Isolator
Shanghai Songjiang shock Absorber Group Co., Ltd.’s official website for you to introduce: KQJZ-900-A dry transformer air Vibration Isolator information, Songjiang Group for dry transformer recommended A damping effect of the best Vibration Isolator products: air Vibration Isolator, it is the world’s best Vibration Isolator products, can be the transformer vibration absorption effect is good.

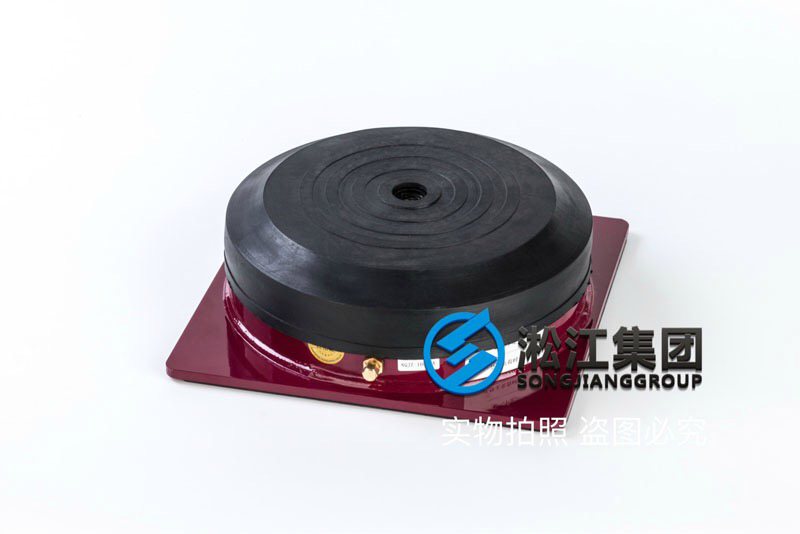

Kqjz-900-a dry type transformer air Vibration Isolator
Pneumatic anti-vibration device, in line with JISD-4101 air cushion pressure test standard
Natural frequency 3Hz~5Hz, maximum operating pressure 4.5kg /cm^2.
The body adopts multi-layer rust-resistant paint.
The body adopts Neoprene Rubber, with strong airtightness.
The anti-vibration effect is the highest, and the shock absorption effect of general equipment is more than 97%.
Load range of 50~3500Kg.
An oil cap can be added to prevent general oil corrosion.
Application: chiller, punch, pump set, transformer.
KQJZ type dry transformer air Vibration Isolator how to use see: KQJZ type air Vibration Isolator installation instructions

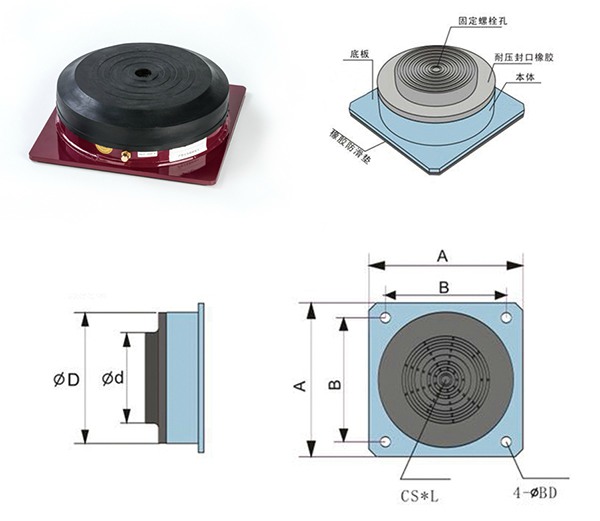

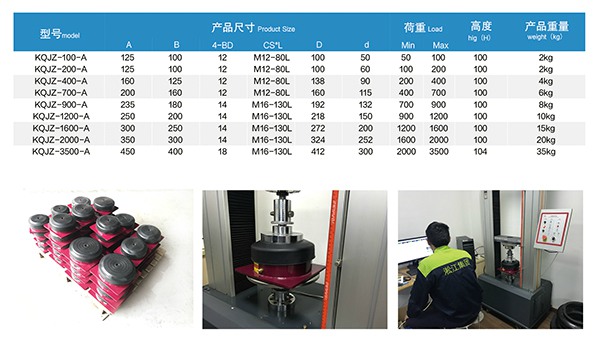

KQJZ Air Vibration Isolator Shape Size and Other Types of Table Details Battle of Jiang group production of air Vibration Isolator vibration and noise of a dry-type power transformer can be absorption effect are good, is currently the best global shock absorption effect of Vibration Isolator products, all the SongJiang group production rubber Vibration Isolator products are all made of natural rubber, rubber content as high as 50%, with good sealing and long service life, simple maintenance, is the first choice of many high-end environments, For example, star hotels, high-end office buildings, floor equipment and other high requirements for shock absorption effect of the environment.
