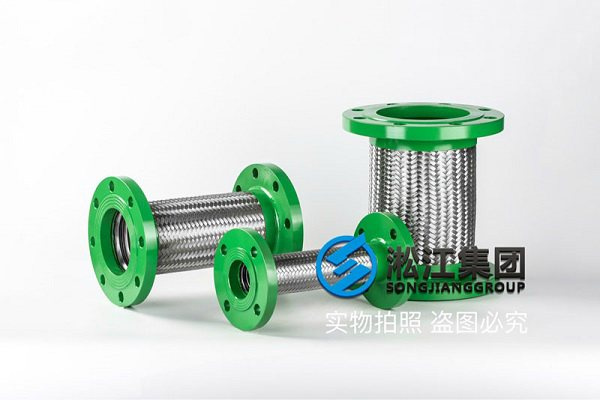

JTW type stainless steel metal Expansion Joint
The official website of Shanghai Songjiang Shock Absorber Group Co., Ltd. will introduce to you: JTW type stainless steel metal Expansion Joint information, Songjiang Group supplies stainless steel metal Expansion Joint products for many pipelines, mainly for settlement, deflection, bending, shock absorption, and other effects, to protect the long-term safe operation of the pipeline system.
1. Performance introduction of JTW stainless steel metal Expansion Joint :
Since the main parts of the hose are made of austenitic stainless steel, it ensures the excellent temperature resistance and corrosion resistance of the hose, and the working temperature range of the hose is wide, ranging from -196 to 600 degrees. The corrosion resistance of the hose can be guaranteed by selecting the appropriate stainless steel grade according to the corrosiveness of the medium passing through the pipeline.
1. The metal Expansion Joint is made of 1Cr18Ni9Ti stainless steel as a whole, which has strong corrosion resistance.
2. The hose body is hydroformed by a thin-walled stainless steel body, which has strong flexibility, elasticity, strong bending, and anti-vibration ability, and the reinforced protection of the braided mesh sleeve makes it have a higher pressure bearing capacity.
3. The connection at both ends of the hose can also be made into other connection methods other than thread and flange standards, which are convenient for connection and use.
4. This product is not only suitable for matching rotary joints but also widely used in flexible connections for conveying various fluid media. Corrosion resistance, high-temperature resistance, low-temperature resistance, lightweight, small size, and good flexibility. Widely used in aviation, aerospace, petroleum, chemical, metallurgy, electric power, paper, wood, textile, construction, medicine, food, tobacco, transportation, and other industries.
2. Advantages of JTW stainless steel metal Expansion Joint :
1. Flexible hose between metal Expansion Joint pitches and small bending radius.
2. The metal Expansion Joint has good flexibility, and no blockage or stiffness.
3. The metal Expansion Joint has light unit weight and good caliber consistency.
4. The metal Expansion Joint has good flexibility, repeated bending, and flexibility.
5. The metal Expansion Joint has good corrosion resistance and high-temperature resistance.
6. The metal Expansion Joint is anti-rat bite and wear-resistant, preventing the internal wires from being worn.
7. The metal Expansion Joint has strong bending resistance, tensile performance, and lateral pressure resistance.
8. The metal Expansion Joint is soft and smooth, easy to thread, install, and position.
9. There are many hose joints for metal Expansion Joint s, which are easy to connect with instruments and equipment.
