“Electro-hydraulic Integrated System” for NBR Oil-Resistant Rubber Expansion Bellow of Ductile Graphite Flanges From Leading Brand Rubber Expansion Bellow Manufacturer
“Electro-hydraulic Integrated System” for NBR Oil-Resistant Rubber Expansion Bellow of Ductile Graphite Flanges From Leading Brand Rubber Expansion Bellow Manufacturer. Songjiang Group produces an oil-resistant rubber expansion bellow for the electro-hydraulic integrated system, mainly using NBR, code N41, which contains about 50% of the total. Quantitative testing reports also support a variety of third-party testing.
Our company’s high-temperature rubber expansion bellow valve body is engraved with Shanghai Songxia, Songxia is a high-end brand of Shanghai Songjiang Shock Absorber Group Co., Ltd. All our company’s special rubber expansion bellow valve body engraved with Shanghai Songxia (25kg, oil, acid and alkali resistance, high-temperature resistance, wear resistance, double ball, different diameter), if the product does not have The products engraved with Shanghai Songxia characters are not special. The products engraved with Shanghai Songjiang Shock Absorber Group Co., Ltd. on the valve body are all 16KG aquatic products, not special products.

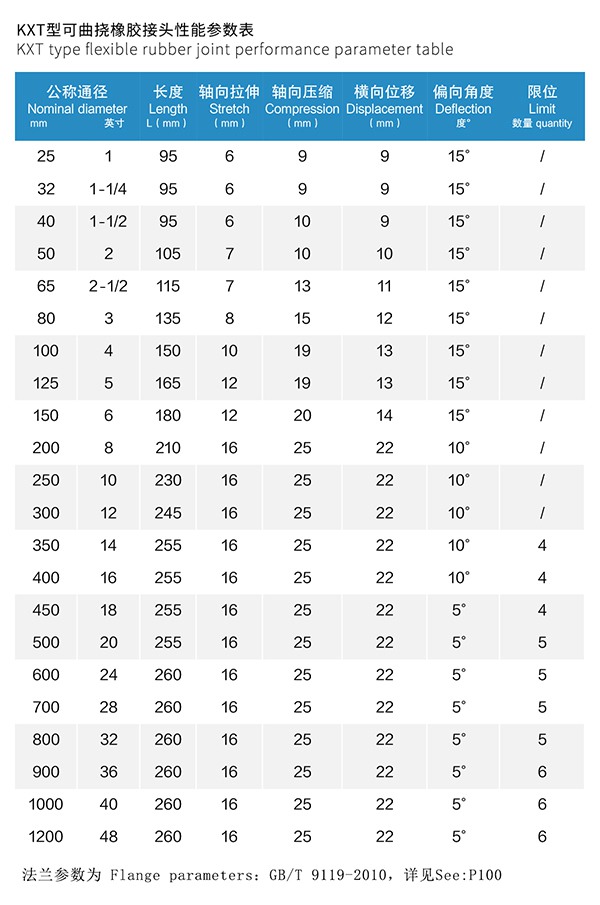

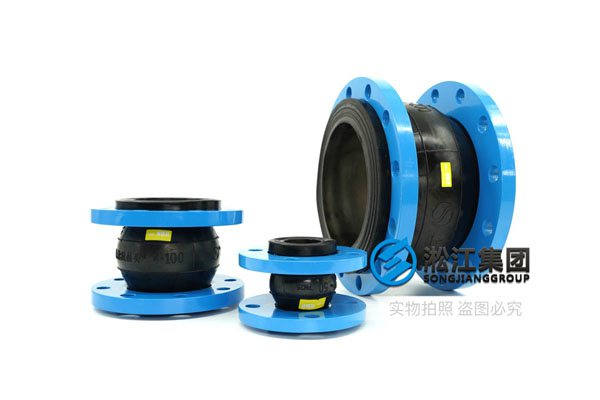

Name: oil resistant rubber expansion bellow
Model: KXT-NBR-DN32-DN1200
Caliber: DN32-DN1200
Pressure: 1.6Mpa
Length: 95-500MM
Axial compression: 18mm
Axial tension: 10mm
Lateral displacement: 12mm
Deviation angle: 15 degrees.

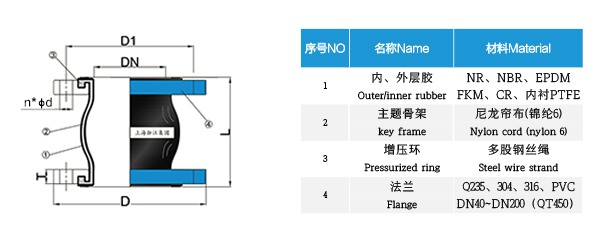

Rubber material: nitrile rubber N41
Flange material: QT450/ carbon steel/stainless steel 304/316
Flange standard: GB/T 9119-2000
NBR:<115° hydraulic oil, emulsion, lubricating oil, thin oil, use for oil exploitation;
Nbr-special: <115° gasoline, diesel oil, aviation kerosene;
Advantages: shock absorption, noise reduction, protection of hydraulic equipment for long-term use, and reduced maintenance costs.
Warranty period: 1year/3years/5years.
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
Qualification Certificate: Qualification Certificate, Quality Guarantee, Inspection Report, TS Pressure Pipeline Production License of rubber expansion bellow Industry, National Type Test Report, Third Party Performance Test Report, Content Component Test Report.
