Shanghai Songjiang Shock Absorber Group Co., Ltd. Official Website presents information on the contract for inertial shock absorber bases at the High-Ranking Retired Officials Activity Center of Hefei City Committee. Songjiang Group provides a variety of inertial expansion bellows and spring vibration isolators bases for water pumps to numerous national entities in China, effectively reducing pump noise. Below is a detailed introduction.

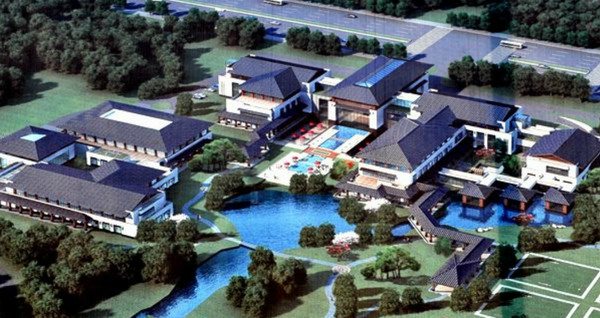

I. Introduction to the High-Ranking Retired Officials Activity Center of Hefei City Committee Project:
Project Overview:
Project Composition: The project has a total floor area of 26,937 square meters, comprising three above-ground floors and one underground floor in a comprehensive retired officials activity center. The above-ground area is 19,121 square meters, with a building height of 19.47 meters. The main structure is a frame structure, including:
Building 1 with an area of 13,691 square meters
Building 2 with an area of 5,430 square meters
Underground basement with an area of 7,816 square meters
A two-story above-ground activity center
Equipment and Materials that may be used:
Exterior wall decoration, doors and windows, glass, waterproofing, corrosion protection, paint coatings
Safety measures, fire alarms, thermal insulation and soundproofing materials
Bathroom fixtures, wall and floor tiles, ceramics, lighting fixtures
High-voltage electrical equipment, industrial control equipment, smart building systems, transformers
Low-voltage electrical equipment, power distribution, instrumentation, electrical cables
Lightning protection and grounding, water supply equipment, pipes and fittings, valve components
Elevators, air conditioning systems

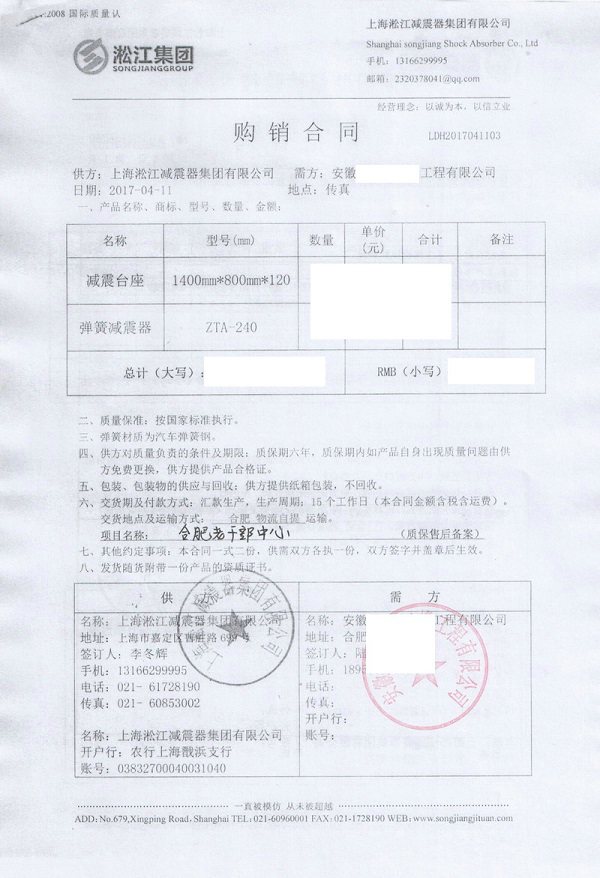

II. Introduction to the Inertial Shock Absorber Base Contract at the High-Ranking Retired Officials Activity Center of Hefei City Committee:
III. Introduction to the Inertial Shock Absorber Bases Used at the High-Ranking Retired Officials Activity Center of Hefei City:
Installation of Pump Vibration Isolation Bases:
To reduce the vibration amplitude of water pump units and limit the transmission of pump vibration to pipelines, it is necessary to install inertial bases beneath the water pump units when using spring isolators or rubber isolators for pump installation. This additional mass increases stability when using isolators. The weight of the inertial base is generally 1.5 to 3 times the weight of the water pump. The base frame is welded from channel steel, filled with concrete, and reinforced with bidirectional 150×150 steel bars. The dimensions of the base length and width are typically extended by 200mm in the length direction and 100mm in the width direction compared to the pump base dimensions.
Effect of Pump Vibration Control:
Depending on the type of vibration isolation used for water pumps, the use of spring isolators can achieve a shock absorber effect of over 95-99%, while rubber isolators can achieve an absorber effect of over 80%. This fundamentally solves the problems caused by pump vibrations in people’s daily lives and industrial production.”

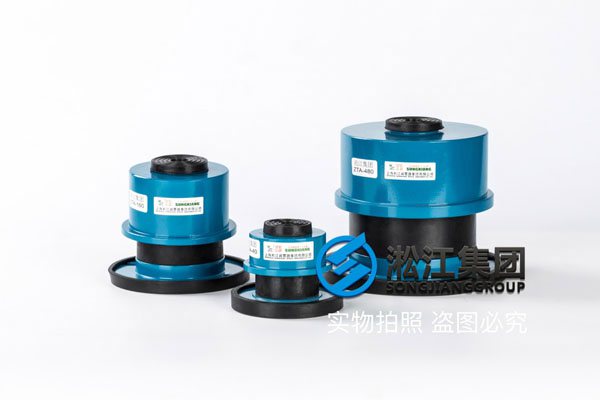

The authentic photo of songjiang spring vibration isolators for High-Ranking Retired Officials Activity Center of Hefei City Committee.
The contract indicates the reciprocal collaborative relationship between these two enterprises.
